BS&B

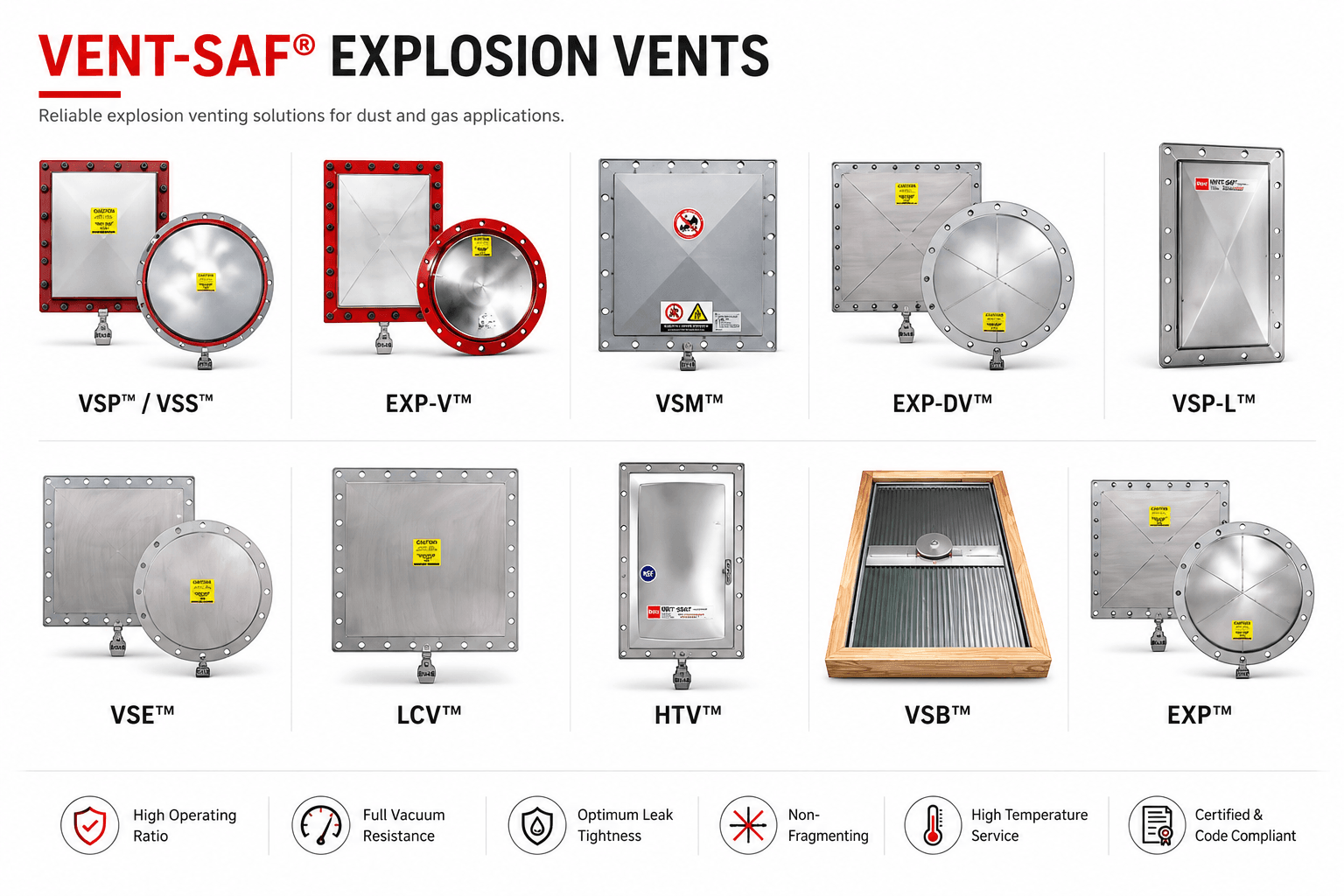

Explosion Vent (Vent-Saf)
Materials : 304ss, 316ss or carbon steel
Operating Temperature : Up to 400ºF/204ºC. Thermally insulated vents may be used up to 1600ºF/870ºC.
Burst Pressure : 0.75psig (0.052barg) to 5psig (0.34 barg) depending on vent size
Burst Tolerance : ~ 0.25psig (~0.017 barg.)
Features : A tag is affixed to the discharge side of the vent and marked with a minimum-maximum burst range
Operating Pressure : Up to 60% of the minimum of the burst range

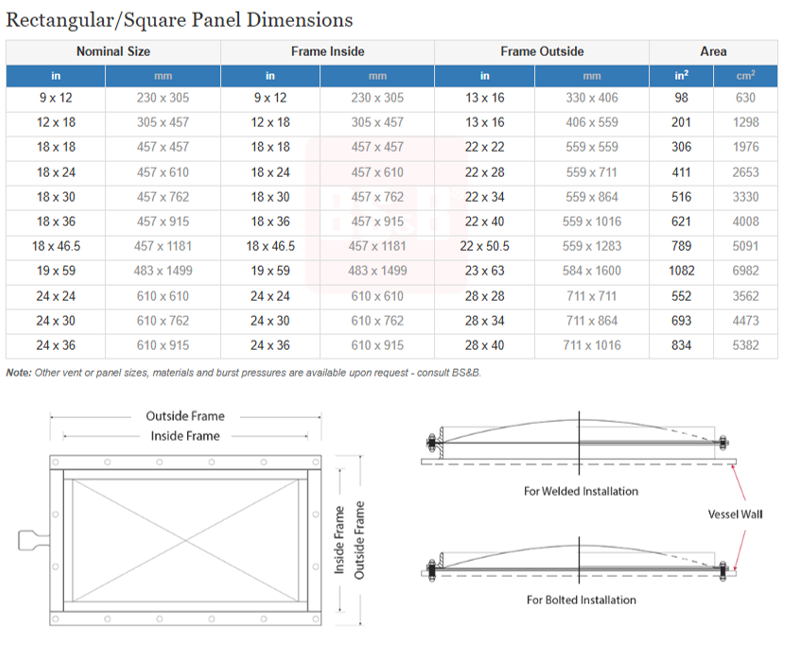

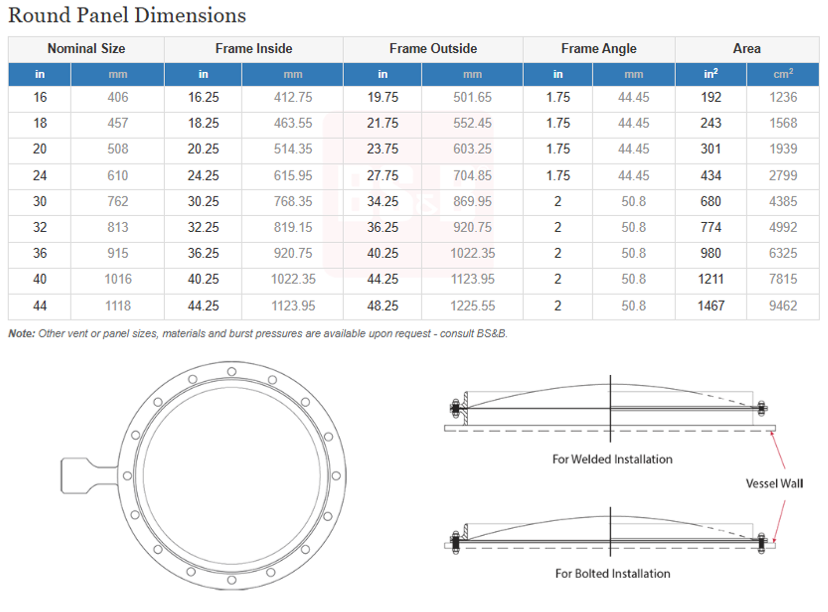

Vent-Saf explosion vents provide rapid, unrestricted pressure relief at a predetermined burst pressure (Pstat), helping protect equipment during a deflagration. Available in round and rectangular designs, they are suitable for silos, dust collectors, cyclones, conveyors, dryers, and other industrial equipment, with sizing based on NFPA 68 and VDI 3673 standards.
